Mindman Solenoid Valves

MVSA SERIES

　

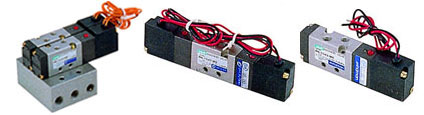

MVSA150 SERIES

#BORE SIZE	M5
#NO. OF PORT	5
#NO. OF POSITION	2
#CONNECTION SIZE	M5 X P0.8

　

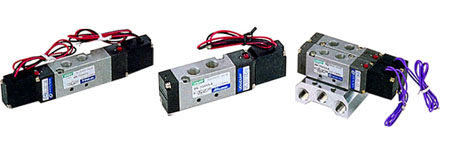

MVSA180 SERIES

#BORE SIZE	6A
#NO. OF PORT	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT- 1 / 8

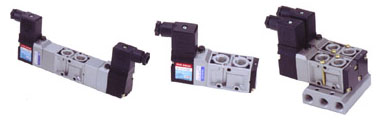

MVSA260 SERIES

#BORE SIZE	8A
#NO. OF PORT	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT - 1 / 4

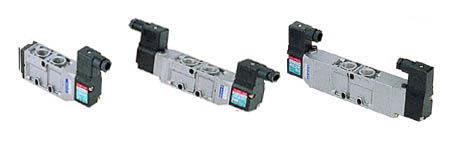

MVSA300 SERIES

#BORE SIZE	10A
#NO. OF PORT	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT - 3 / 8

　

Mindman Solenoid Valves

MVSB SERIES

　

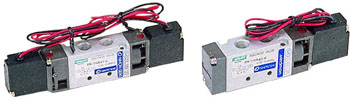

MVSB 180 SERIES

#BORE SIZE	6A
#NO. OF PORT	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT - 1 / 8

　

Mindman Solenoid Valves

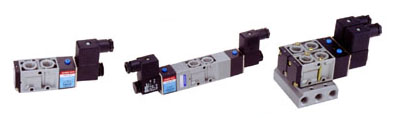

MVSC/D SERIES

　

　

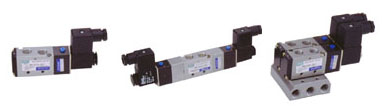

MVSC/D－180

#BORE SIZE	6A
#NO. OF PORT	3	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT - 1 / 8

MVSC/D－220

#BORE SIZE	8A
#NO. OF PORT	3	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT - 1 / 4

　

MVSC/D－260

#BORE SIZE	8A
#NO. OF PORT	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT - 1 / 4

　

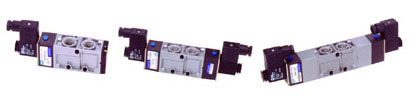

MVSC/D－300

#BORE SIZE	10A
#NO. OF PORT	3	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PT - 3 / 8

　

MVSC/D－460

#BORE SIZE	15A
#NO. OF PORT	3	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	G - 1 / 2

　

Mindman Solenoid Valves

MVDC SERIES

　

MVDC－220－3E1

#BORE SIZE	6A
#CONNECTION SIZE	3 - PT 1 / 8
#NO. OF PORT	3
#MEDIUM	AIR

　

Mindman Solenoid Valves

MU SERIES

　

MODEL	MUD	MUA	MUDC	MSUS

#PIPE SIZE	1/8"～3/8"	1/4"～3/8"	1/4"～1/2"	1/2"～1"
#OPERATION #PRESSURE #(kgf/cm)	0～7	0～10	0～1	0.5～15
#FLUID TEMP	-5C～80C	-5C～80C	-5C～80C	-5C～80C
#STEAM				●●●
#WATER	●●●	●●	●●●	●●●
#AIR	●●●	●●●		●●
#OIL	●●			●●
#GAS	●●
#VACUUM	●●

MODEL	MUAO	MUW	MUG	MUAW

#PIPE SIZE	1/4"～1/2"	3/8"～2"	3/8"～2"	1/2"～2"
#OPERATION #PRESSURE #(kgf/cm)	0.5～15	0～5	0～5	1～15
#FLUID TEMP	-5C～80C	-5C～80C	-5C～80C	-5C～80C
#STEAM
#WATER	●●	●●●	●●	●●●
#AIR	●●●	●●	●●	●●●
#OIL	●●●	●●		●●
#GAS			●●●
#VACUUM			●●●

MODEL	MUS	MUW(no)	MSUW	MUSW...F

#PIPE SIZE	1/2"～2"	3/8"～1"	1/2"～2"	1/2"～2"
#OPERATION #PRESSURE #(kgf/cm)	1～15	0.1～8	0～5	0～5
#FLUID TEMP	-5C～80C	-5C～80C	-5C～80C	-5C～80C
#STEAM	●●●
#WATER	●●●	●●●	●●●	●●●
#AIR	●●	●●●	●●	●●
#OIL		●●	●●	●●
#GAS
#VACUUM

　

MODEL	MUS...F	MUSW...F	MUS...F	MUW...F

#PIPE SIZE	1 1/4"～4"	1 1/4"～4"	1/8"～3/8"	1/8"～3/8"
#OPERATION #PRESSURE #(kgf/cm)	1～10	0.5～8	----～----	----～----
#FLUID TEMP	-5C～80C	-5C～80C	-5C～80C	-5C～80C
#STEAM	●●●		●●●	●●●
#WATER	●●●	●●●	●●●	●●●
#AIR	●●●	●●	●●●	●●●
#OIL			●●●	●●●
#GAS			●●●	●●●
#VACUUM			●●●	●●●

Mindman Solenoid Valves

MB SERIES

MBD

CODE DIMENSION mm	10	15	20	25
L	64.0	64.0	81.0	91.0
L'	37.0	37.0	46.0	51.0
H	114.0	114.0	120.0	127.0
H'	100.0	100.0	106.0	112.0
W	41.5	41.5	51.5	61.5
N.W.(kg)	0.7	0.6	0.8	1.1

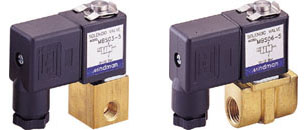

MBS

CODE DIMENSION mm	03	06
L	□22	32
H	58	61
H'	51	53
W	22/30
N.W.(kg)	0.15

Mindman Solenoid Valves

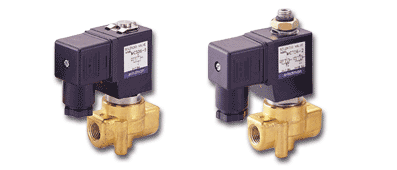

MCS/MCT SERIES

　

TYPE	MCS/MCT

CODE DIMENSION mm	06	10	15	20	06	10	15	20
L	50		56	88	50		56	88
H	91			95	98			102
H'	80			84	87			91
W	30/36				30/36
N.W.(kg)	0.4		0.5	0.6	0.4		0.5	0.6

　

Mindman Solenoid Valves

MWA/S/H SERIES

TYPE	MWA/S/H

CODE DIMENSION mm	10/15	20	25	32/40	45/50
L	71	80	90	97	118
H	136	141	148	171	191
H'	122	114	127	142	156
W	51	61	71	76	95
N.W.(kg)	1.3	1.5	1.9	2.9	4.5

　

Mindman Solenoid Valves

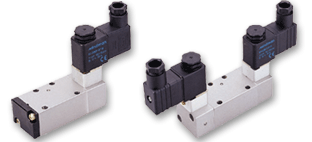

MVSI SERIES

MVSI－260

#NO. OF PORT	5
#NO. OF POSITION	2	2	3
#MEDIUM	AIR
#WORKING #PRESSURE RANGE	2 ~ 7 kgf/cm		3 ~ 7 kgf/cm

Mindman Solenoid Valves

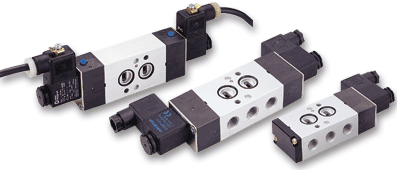

MVSN SERIES

MVSN－300

#BORE SIZE	8A
#NO. OF PORT	5
#NO. OF POSITION	2	2	3
#CONNECTION SIZE	PF - 1/4 (PORT A, R1, R2)

　

　
