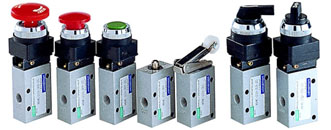

Mindman Mechanical Valves ACT SERIES

MODEL	ACT
PORT NUMBER	3
CONNECTION SIZE	PT 1/8
MEDIUM	AIR
OPERATION PRESSURE	0~9 kgf/cm
AMBIENT TEMPERATURE	5~60℃

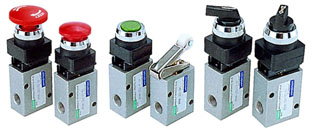

MODEL	HAND VALVE,PLAM VALVE,PEDAL VALVE, TREADLE VALVE
BORE SIZE	PT1/4,PT3/8
PORT NO./POSITION	5/2,5/3,3/2

MJV-3 SERIES

normally CLOSED 3-way poppet
Medium	air
Stem Travel	1/8"
Input Pressure	300 psig max.
Effective Orifice	7.2mm

　

MJVO-3 SERIES

normally CLOSED 3-way poppet
Medium	air
Stem Travel	1/8"
Input Pressure	300 psig max.
Effective Orifice	5.7mm

　

MJTV-3 SERIES

　

normally CLOSED 3-way poppet two position toggle valve
Medium	Air, water, oil
Arc of Travel	60
Input Pressure	300 psig max.
Air Flow	@50 psig 14 SCFM, @100 psig 25 SCFM

　

MJTV-5 SERIES

4-way spool valve toggle actuated two position 5 ported
Medium	Air, water, oil
Arc of Travel	80
Input Pressure	150 psig max.
Effective Orifice	4.3mm

　

FV-5P SERIES

4-way spool valve plunger actuated spring return fully ported
Medium	Air, water, oil
Stem Travel	1/8
Input Pressure	Vacum to 150 psig max.
Effective Orifice	8.6mm

　

MVHA-2,3 SERIES

MVHA-2,3
BORE SIZE	M5
MEDIUM	AIR
WORKING PRESSURE RANGE	0~9kgf/cm
AMBIENT TEMPERATURE	5~60℃

　

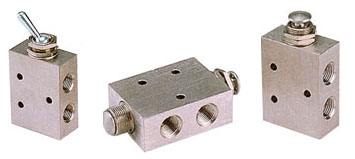

MVHA-41 SERIES

MVHA-41
BORE SIZE	6A(PT 1/8)
MEDIUM	AIR
WORKING PRESSURE RANGE	0~9kgf/cm
AMBIENT TEMPERATURE	5~60℃

　

Mindman Hand Valve MVHB-220-4TV SERIES

MVHB-220-4TV
BORE SIZE	8A(PT 1/4 )
MEDIUM	AIR
WORKING PRESSURE RANGE	0~7 kgf/cm
AMBIENT TEMPERATURE	5~60℃

　

Mindman Rotary Hand Valve MVHC SERIES

MVHC
BORE SIZE	6A, 8A	8A, 10A, 15A	15A, 20A
MEDIUM	AIR
WORKING PRESSURE RANGE	0~10 kgf/cm
AMBIENT TEMPERATURE	5~60℃

　

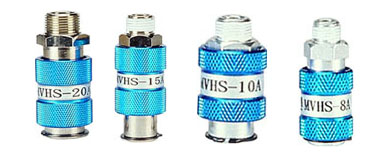

Mindman Shut-off Valve MVHS SERIES

MVHS
BORE SIZE	PT 1/4	PT 3/8	PT 1/2	PT 3/4
MEDIUM	AIR
WORKING PRESSURE RANGE	0~10 kgf/cm
AMBIENT TEMPERATURE	5~60℃

　

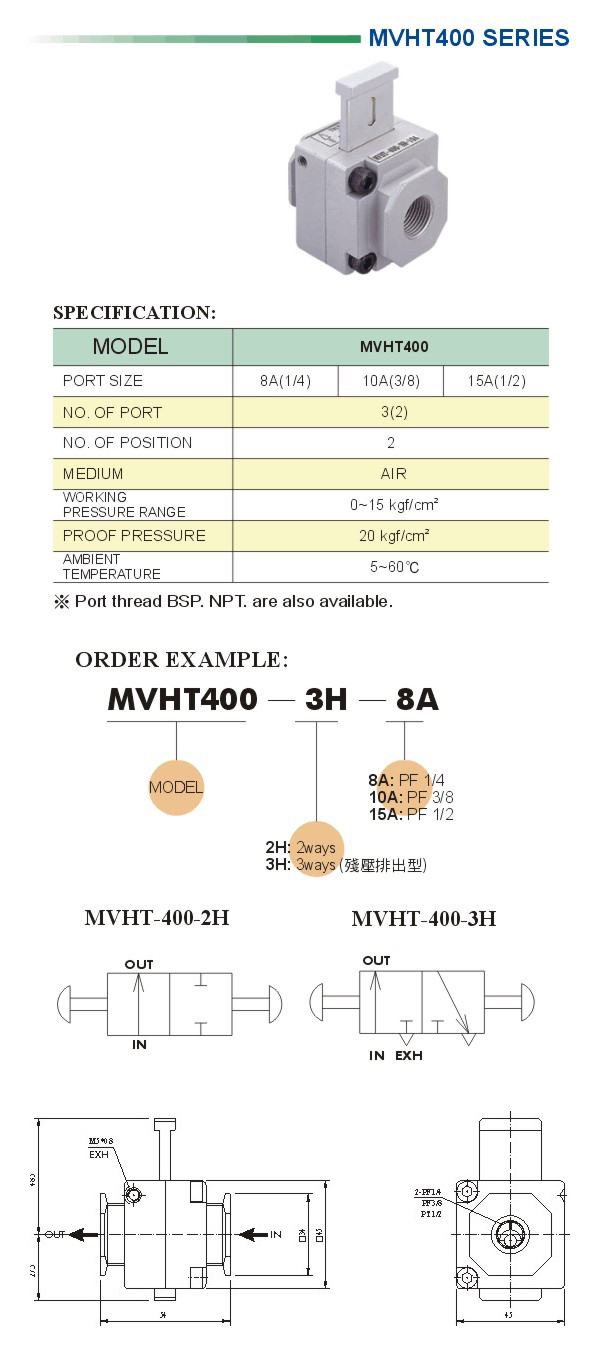

Mindman Lock-Out Valve MVHT400 SERIES

MVHT400
PORT SIZE	8A(1/4)	10A(3/8)	15A(1/2)
NO. OF PORT	3(2)
NO. OF POSITION	2
MEDIUM	AIR

　

Mindman Foot Valve MVFA SERIES

MVFA
NO. OF PORT	3	3	4
NO. OF POSITION	2
PORT SIZE	PT 1/4
MEDIUM	AIR
