Mindman FRL's
MACP SERIES

MACP200
COMPONENTS MAFR200, MAL200
BORE SIZE 6A 8A
PIPE SIZE PT 1/8 PT 1/4
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)

¡@

MACP300
COMPONENTS MAFR300, MAL300
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)


MACP400
COMPONENTS MAFR400, MAL400
BORE SIZE 8A 10A 15A
PIPE SIZE PT 1/4 PT3/8 PT 1/2
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)


MACP401
COMPONENTS MAFR401, MAL401
BORE SIZE 8A 10A 15A
OPERATING PRESSURE 0~15kgf/cm (0~1.43MPa)
PROOF PRESSURE 20kgf/cm (1.96MPa)

Mindman FRL's
MACC SERIES

MACC300
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)


Mindman FRL's
MACT SERIES

MACT300
COMPONENTS MAF300, MAR300, MAL300
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)

MACT400
COMPONENTS MAF400, MAR400, MAL400
BORE SIZE 8A 10A 15A
PIPE SIZE PT 1/4 PT 3/8 PT 1/2
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)

MACT401
COMPONENTS MAF401, MAR401, MAL401
BORE SIZE 8A 10A 15A
OPERATING PRESSURE 0~15kgf/cm (0~1.43MPa)
PROOF PRESSURE 20kgf/cm (1.96MPa)

MACT500
COMPONENTS MA500, MAR500, MAL500
BORE SIZE 20A 25A
PIPE SIZE PT3/4 PT 1
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)

Mindman Filter/Regulators
MAFR SERIES

MAFR200
BORE SIZE 6A 8A
PIPE SIZE PT 1/8 PT 1/4
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAFR300
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAFR400
BORE SIZE 8A 10A 15A
PIPE SIZE PT 1/4 PT 3/8 PT 1/2
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAFR401
BORE SIZE 8A 10A 15A
OPERATING PRESSURE 0~15kgf/cm (0~1.43MPa)
PROOF PRESSURE 20kgf/cm (1.96MPa)
REGULATION PRESSURE RANGE Standard Type : 1~8.5 kgf/cm (0.1~0.83MPa)
High Pressure Type : 1~15kgf/cm (0.1~1.43MPa)

Mindman Filters
MAF SERIES

MAF200
BORE SIZE 6A 8A
PIPE SIZE PT 1/8 PT 1/4
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAF300
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAF400
BORE SIZE 8A 10A 15A
PIPE SIZE PT 1/4 PT 3/8 PT 1/2
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAF401
BORE SIZE 8A 10A 15A
OPERATING PRESSURE 0~15kgf/cm (0~1.43MPa)
PROOF PRESSURE 20kgf/cm (1.96MPa)
OPERATING MEDIUM AIR

MAF500
BORE SIZE 20A 25A
PIPE SIZE PT 3/4 PT 1
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

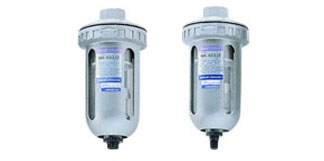

Mindman Filters
MAD SERIES

MAD400
BORE SIZE 8A 10A 15A
PIPE SIZE PT 1/4 PT 3/8 PT1/2
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

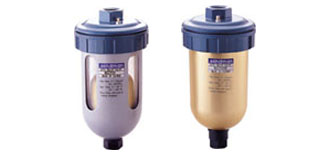

MAD500
DIMENSIONS High 18cm(7"), Diameter 20cm(4")
INLET PT 1/2
OUTLET PT 3/8
OPERATING PRESSURE 1.3~13kgf/cm

MAD501
DIMENSIONS 6"¡Ñ4"¡Ñ8" (150mm¡Ñ100mm¡Ñ200mm)
WEIGHT 2.9 lbs. (1.3kg) 3.1 lbs. (1.4kg)
INLET PT 1/2
MANUAL OUTLET PT1/2

Mindman Regulators
MAR SERIES

MAR200
BORE SIZE 6A 8A
PIPE SIZE PT 1/8 PT 1/4
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAR300
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAR301
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAR400
BORE SIZE 8A 10A 15A
PIPE SIZE PT 1/4 PT 3/8 PT 1/2
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAR401
BORE SIZE 8A 10A 15A
OPERATING PRESSURE 0~15kgf/cm (0~1.43MPa)
PROOF PRESSURE 20kgf/cm (1.96MPa)
REGULATION PRESSURE RANGE Standard Type:1~8.5kgf/cm (0.1~0.83MPa)
High Pressure Type:1~15kgf/cm (0.1~1.43MPa)

MAR500
BORE SIZE 20A 25A
PIPE SIZE PT 3/4 PT 1
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

Mindman Lubricators
MAL SERIES

MAL200
BORE SIZE 6A 8A
PIPE SIZE PT 1/8 PT 1/4
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAL300
BORE SIZE 8A 10A
PIPE SIZE PT 1/4 PT 3/8
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAL400
BORE SIZE 8A 10A 15A
PIPE SIZE PT 1/4 PT 3/8 PT 1/2
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

MAL401
BORE SIZE 8A 10A 15A
OPERATING PRESSURE 0~15kgf/cm (0~1.43MPa)
PROOF PRESSURE 20kgf/cm (1.96MPa)
OPERATING MEDIUM AIR

MAL500
BORE SIZE 20A 25A
PIPE SIZE PT 3/4 PT 1
OPERATING PRESSURE 0~9.9kgf/cm (0~0.99MPa)
PROOF PRESSURE 15kgf/cm (1.5MPa)

Mindman Pressure Switch
MPS SERIES

MPS-6A
FITTING METHOD
PT 1/8
(for pipe-thread fitting)
 O-ring : S4
(for O-ring fitting)
AMBIENT TEMPERATURE 5~60¢J
OPERATING PRESSURE 8.16kgf/cm (8 Bar)
PROOF PRESSURE 10.2kgf/cm (10 Bar)
