Mindman Guided Cylinder MCGA
SERIES
|
| MCGA STOP/LIFT | ||||||
 |
||||||
| #TUBE I.D. |  20 |
32 |
40 |
50 |
63 |
80 |
| #PORT SIZE Rc(PT) | 1/8(M5)* | 1/8 | 1/8 | 1/4 | 1/4 | 3/8 |
¡@
| MCGA PUSH TYPE | ||||||
 |
||||||
| #TUBE I.D. | 20 |
32 |
40 |
50 |
63 |
80 |
| #PORT SIZE Rc(PT) | 1/8 | 1/4 | 1/4 | 3/8 | 3/8 | 3/8 |
¡@

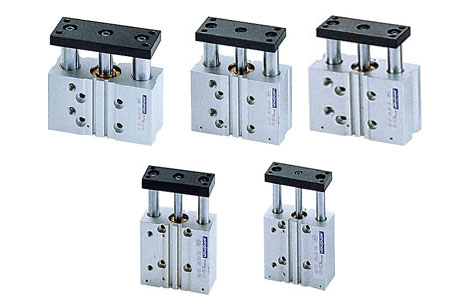

MCGB SERIES
| MCGB | ||||||
 |
||||||
| #TUBE I.D. | 12 |
16 |
20 |
25 |
32 |
|
| #PORT SIZE Rc(PT) | M5¡Ñ0.8 | M5¡Ñ0.8 | PT 1/8 | PT 1/8 | PT 1/8 | |
Mindman Guided Cylinders

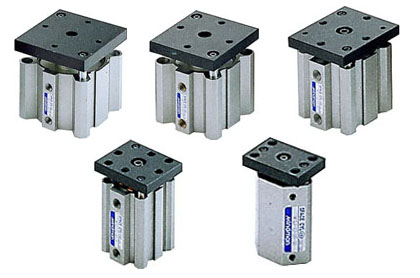

MCGJ SERIES
|
MCGJ |
||||||||||
 |
||||||||||
| #TUBE I.D. | 12 |
16 |
20 |
25 |
32 |
40 |
50 |
63 |
80 |
100 |
| #PORT SIZE Rc(PT) | M5¡Ñ0.8 | PT 1/8 | PT 1/4 | |||||||
¡@

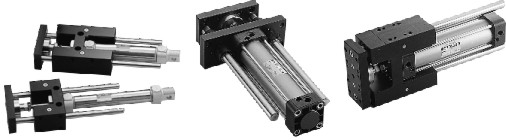

MGT SERIES
| MGT | ||||||
|
|
||||||
|
MODEL
|
MGTK | MGTK, MGTU, MGTX | ||||
| I.D. (mm) | 20, 25 | 20, 25, 32, 40, 50, 63 | ||||
| The range of stroke (mm) | Stroke by request | |||||
| Power fluid | Filtered air with or without lubrication | |||||
| The range of pressure (MPa) | 0.2~0.7 | |||||
| The range of temperature(¢J) | 5~60¢J | |||||
Mindman Guided Cylinders

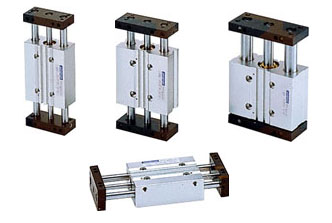

MCGD SERIES
|
MCGD |
||||||||||
 |
||||||||||
| #TUBE I.D. | 12 |
16 |
20 |
25 |
32 |
|||||
| #PORT SIZE Rc(PT) | M5¡Ñ0.8 | M5¡Ñ0.8 | PT 1/8 | PT 1/8 | PT 1/8 | |||||
| ¡@ | ¡@ | ¡@ | ||||||||
¡@
MCG3 SERIES
| MCG3 | |||
 |
|||
| Operation type | Double acting | ||
| Port size rc(PT) | 1/4 | ||
| Standard Stroke | 30, 50, 75, 100 mm | ||
¡@
Mindman Twin Rod Cylinder
MCDA SERIES
| MCDA | ||||||
 |
||||||
| #TUBE I.D. | 12 |
16 |
20 |
25 |
32 |
|
| #PORT SIZE Rc(PT) | M5¡Ñ0.8 | M5¡Ñ0.8 | M5¡Ñ0.8 | PT 1/8 | PT 1/8 | |
¡@
¡@
